■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒分類: | 病毒系列，慢病毒克隆載體 |
質粒大小: | 8140bp |
原核抗性: | Amp |
篩選標記: | Puro |
克隆菌株: | Stbl3 |
培養條件: | 37℃ |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導 |
5'測序引物:
| CMV-F：CGCAAATGGGCGGTAGGCGTG
|
3'測序引物: | 根據序列設計引物 |
■ 質粒屬性
質粒宿主: | 哺乳細胞,慢病毒 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Amp |
真核抗性: | Puro
|
熒光標記: |
|
■ 質粒簡介
pLVX-IRES-Puro is an HIV-1-based, lentiviral expression vector that allows the simultaneous expression of your protein of interest and puromycin resistance (Puror) in virtually any mammalian cell type, including primary cells. The vector expresses your protein of interest and Puror from a bicistronic mRNA transcript, allowing puromycin resistance to be used as an indicator of transduction efficiency and a marker for selection.
Expression of the bicistronic transcript is driven by the constitutively active human cytomegalovirus immediate early promoter (PCMV IE) located just upstream of the MCS. An encephalomyocarditis virus (EMCV) internal ribosome entry site (IRES), positioned between the MCS and Puror , facilitates cap-independent translation of Puror from an internal start site at the IRES/Puror junction .
pLVX-IRES-Puro contains all of the viral processing elements necessary for the production of replication-incompetent lentivirus, as well as elements to improve viral titer, transgene expression, and overall vector function. The woodchuck hepatitis virus posttranscriptional regulatory element (WPRE) promotes RNA processing events and enhances nuclear export of viral RNA , leading to increased viral titers from packaging cells. In addition, the vector includes a Rev-response element (RRE), which further increases viral titers by enhancing the transport of unspliced viral RNA out of the nucleus . Finally, pLVX-IRES-Puro also contains a central polypurine tract/central termination sequence element (cPPT/CTS). During target cell infection, this element creates a central DNA flap that increases nuclear import of the viral genome, resulting in improved vector integration and more efficient transduction .The vector also contains a pUC origin of replication and an E. coli ampicillin resistance gene (Ampr ) for propagation and selection in bacteria.

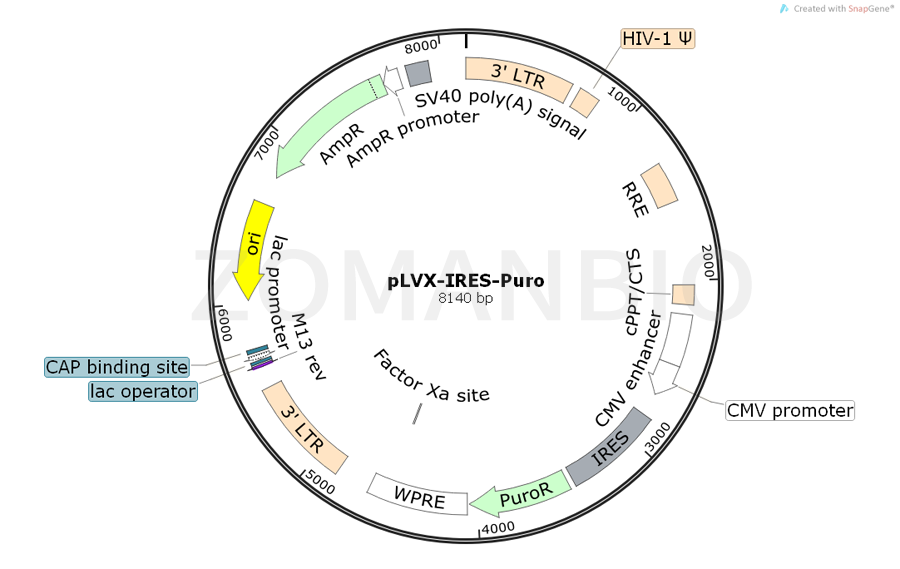

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK757pLVX-IRES-Puro慢病毒表達質粒.txt
