■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒分類: | 哺乳細胞，哺乳細胞雙雜交載體 |
質粒大小: | 7400bp |
原核抗性: | Amp |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物: | CMV-F：CGCAAATGGGCGGTAGGCGTG |
3'測序引物: | 根據序列設計引物 |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 雜交 |
片段類型: |
|
片段物種: |
|
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
The CheckMate? Mammalian Two-Hybrid System provides positive control vectors that encode and express two proteins known to interact in vivo (13). MyoD is expressed in skeletal muscle and is a myogenic regulatory protein (14,15). The Id protein acts as a negative regulator of myogenic differentiation (16). MyoD and Id are members of the helix-loop-helix family of nuclear proteins. The pBIND-Id Control Vector contains a segment of murine Id cDNA (amino acids 29–148; 13,16) cloned in-frame with the GAL4 DNA-binding domain of the pBIND Vector . The pACT-MyoD Control Vector contains a segment of murine MyoD cDNA (amino acids 1–318; 13,15) cloned in-frame with the VP16 activation domain of the pACT Vector .

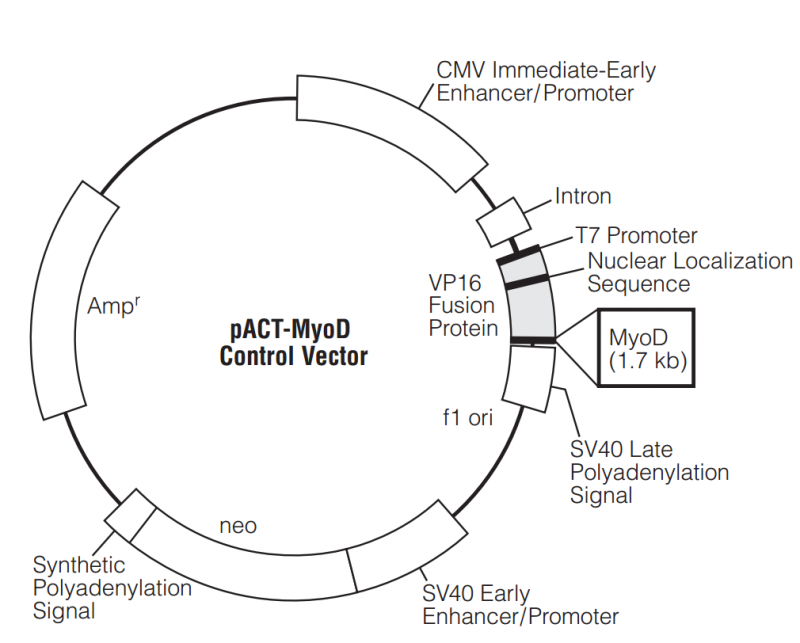

■ 質粒圖譜
